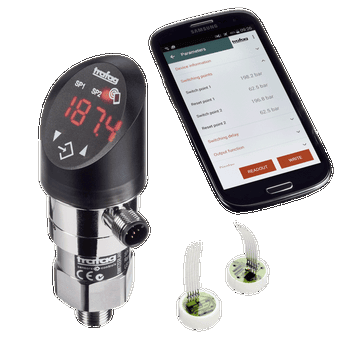

The DPS 8381 is the ideal combination of pressure switch and transmitter with pressure display. The parameters are set on the device or, saving time, with an Android app over NFC. The settings, in combination with the comprehensive range of options, make the DPC 8381 a very versatile device for industrial applications.

• Measuring range: 0 ... 2.5 to 0 ... 600 bar 30 to 0 ... 7500 psi adjustable
• Measuring principle: Thin-film-on-steel
• Accuracy @ 25°C typ.: ±0.5% FS typ.
• Output signal: 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V
• Electrical connections: Male electrical connector M12x1, 5-pole male electrical connector M12x1, 4-pole
• Process connections: G1/4" f; G1/4" m (seal); G1/4" m with integrated damping; G1/4" m (manometer) EN 837; G1/2" m (manometer) EN 837; 1/4"NPT m; 1/2"NPT m; R1/4" m, DIN3858; M14x1.5 m, DIN6149-2; 7/16"-20UNF m, DIN3866; 7/16" -20UNF m, SAE4 (J1926); 7/16"-20UNF f, SAE J51
• Media temperature: -25°C ... +85°C
• Ambient temperature: -25°C ... +85°C
