Valves / Pressure reducers

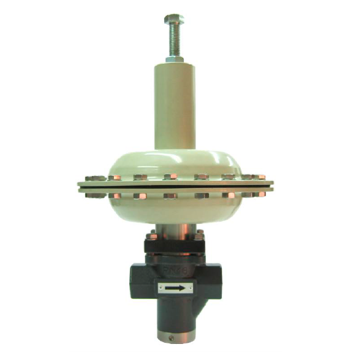

Diaphragm-balanced self-regulating pressure reducing valve used to provide a constant downstream pressure even when there are oscillations in the inlet pressure. Easy to adjust and maintenance-free.

Maximum inlet pressure 16 bar.

• Pressure range 0.01 to 8 barg.
• Temperature range -20ºC to 80ºC (liquids and gases)
• Temperature range up to 180ºC (for steam)
• Fluids: Specially designed for low outlet pressure gases. Groups 1 and 2 liquids and gases. Steam, compressed air, nitrogen, fuel oil, water, neutral gases,...
• Body material: AISI 316L stainless steel
• Super duplex (*)
• Material of mouldings: AISI 316L stainless steel
• Housing material: AISI 316L stainless steel
• Connections: Threaded BSP / NPT
• Flanges DIN or ANSI
• Clamp (*)

(*) Please enquire
