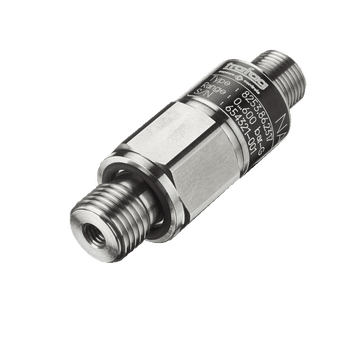

NAH 8253

Measuring range: 0 ... 2.5 to 0 ... 600 bar 0... 30 to 0 ... 7500 psi
Measuring principle: Thin steel film
Accuracy @ 25°C typ.: ±0.3% FS typ. ±0.15% FS typ. ±0.1% FS typ.
Output signal: 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC radiometric
Electrical connections: Industry standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Cable IP67
Process connections: G1/4" m; 1/4"NPT m; 1/4"NPT f; 7/16"-20UNF m; 7/16"-20UNF f, DIN3866, valve opener; 7/16"-20UNF m, SAE4 (J1926); 9/16"-18UNF m, SAE6 (J1926); 3/8"-24UNF m, SAE3 (J514); R1/4" m, DIN2999; M14x1.5 m, DIN EN ISO 6149-2
Media temperature: -40°C ... +125°C
Ambient temperature: -40°C ... +125°C
