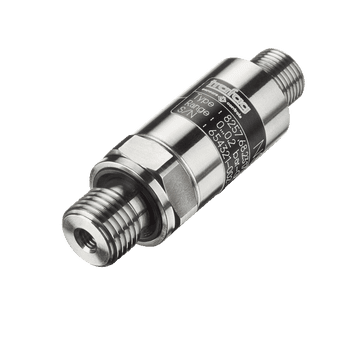

The NSL compact low pressure transmitter is the only pressure transmitter on the market with a thin-film steel cell and pressure ranges from 0...200 mbar. This combination also allows precise measurements with long-term stability even over small pressure ranges. The breakage protection is up to 125 times higher, facilitating use in critical applications.

• Measuring range: 0 .... 0.2 to 0 ... 2.5 bar 0 ... 3 to 0 ... 30 psi
• Measuring principle: Thin steel film
• Approval/Conformity: DNV-GL
• Accuracy @ 25°C typ.: 0.15 ... 0.8% FS typ.
• Output signal: 4 ... 20 mA, 0 ... 5 VDC, 0... 10 VDC, 0.5... 4.5 VDC radiometric
• Electrical connections: Industry standard, contact distance 9.4 mm; M12x1; MIL-C 26482
• Process connections: G1/4" m; 1/4" NPT m; 1/4" NPT f; 9/16"-18UNF m, SAE6 (J1926)
• Media temperature: -40°C ... +125°C
• Ambient temperature: -40°C ... +125°C
